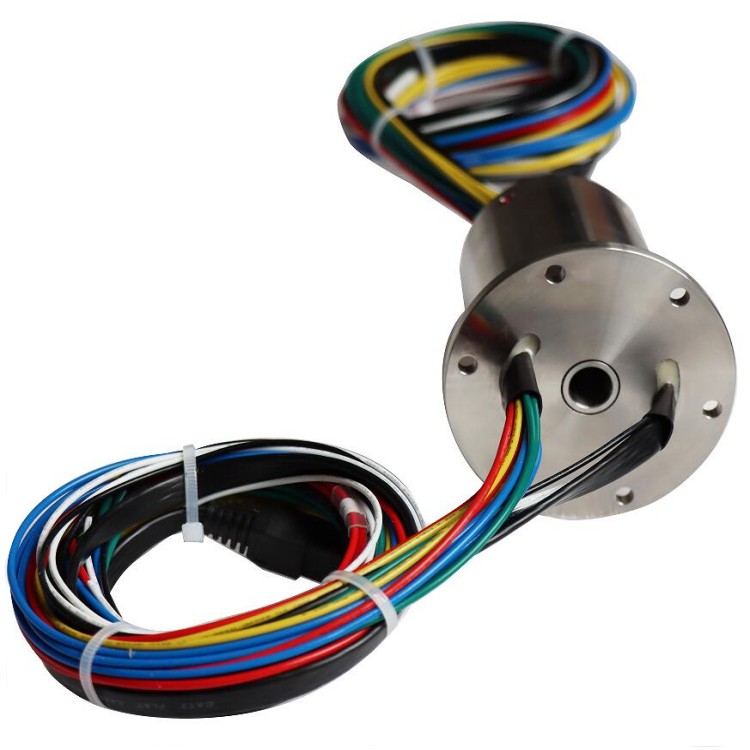

DHK010-16-002 |
|||
The main parameters |
|||
Number of circuits |
16 |
Working temperature |
“-40℃~+65℃" |
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
<70% |
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
Dynamic resistance variation |
<10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Through Hole Slip Rings - DHK Series
Available for custom, standard ID 3-500 mm, OD 10-800 mm
Ingiant technology supply through hole/bore slip rings are widely used for rotating solutions. applications as medical rotary CNC worktable, CNC machining center, wire reel, packaging machinery, wind turbine, etc. In the future, through hole/bore slip rings will be widely used in new areas such as automation equipment, automatic detection equipment, automated robots, and robotic arms.
Customized products account for almost 60%although,have 200+ standard moulds as an original slip rings manufacturer. To create your most suitable through hole slip ring connector, please feel free to contact us.
