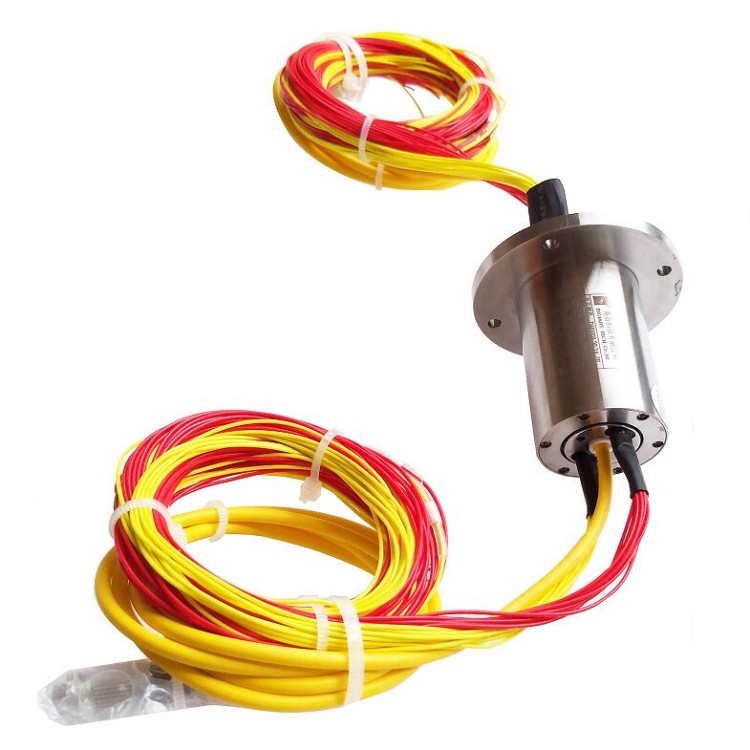

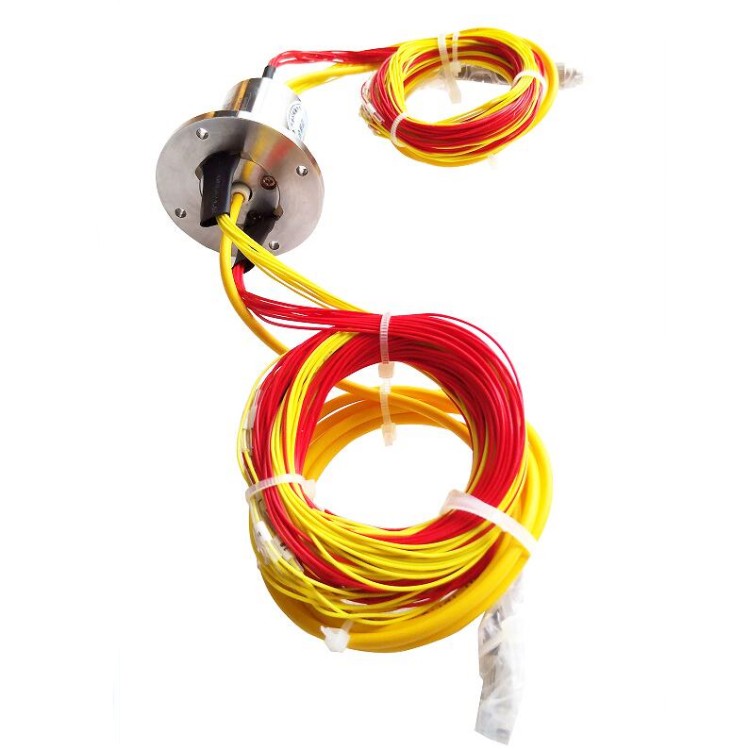

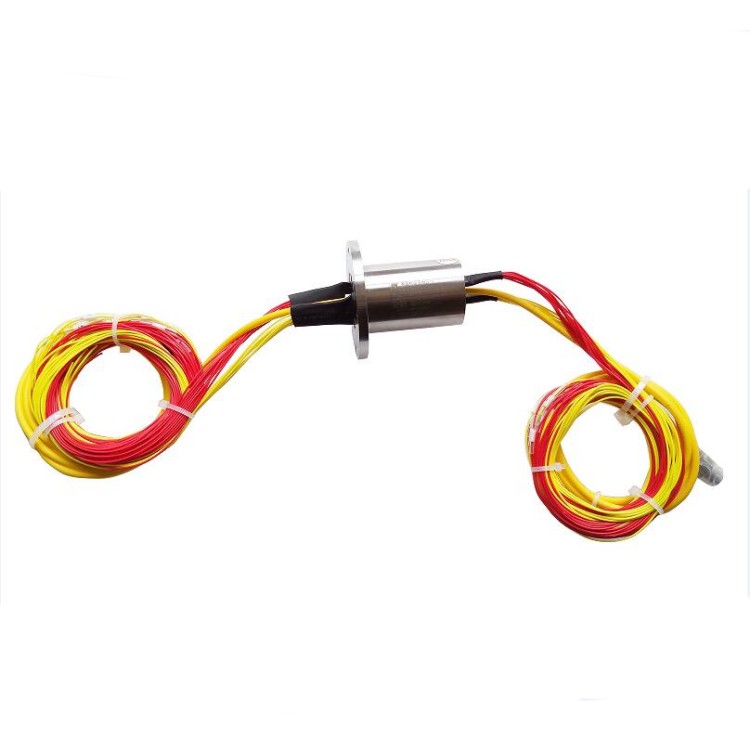

DHS029-20-2A-1F |
|||
The main parameters |
|||
Number of circuits |
20 |
Working temperature |
“-40℃~+65℃" |
Rated current |
can be customized |
Working humidity |
<70% |
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
Dynamic resistance variation |
<10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

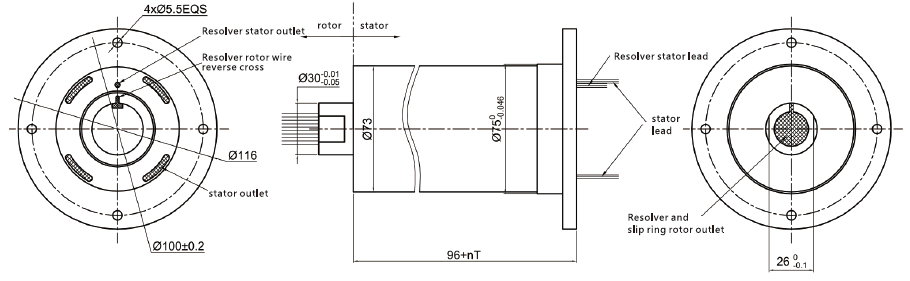

Product drawing:
What is capsule slip ring?
Capsule slip ring are often offered in a compact size with flange like miniature slip ring, used for electrical power transmission and data transfer between a stationary and a rotating part. Capsule Slip Rings also have the rotor, stator, brush block, bearing and housing. They are easily installed and widely used in small and medium-sized equipments, such as speed dome camera, intelligent toys, stage lights and drones, etc.
Ingiant offer capsule slip rings with various forms, maintenance free, gold contact, silver fiber brush, low voltage. Also can be combined with other types rotary joints like Ethernet, fiber optic rotary joint, hydraulic, radio freqency.
Our advantage:
