RFCX_OFRJs adapter

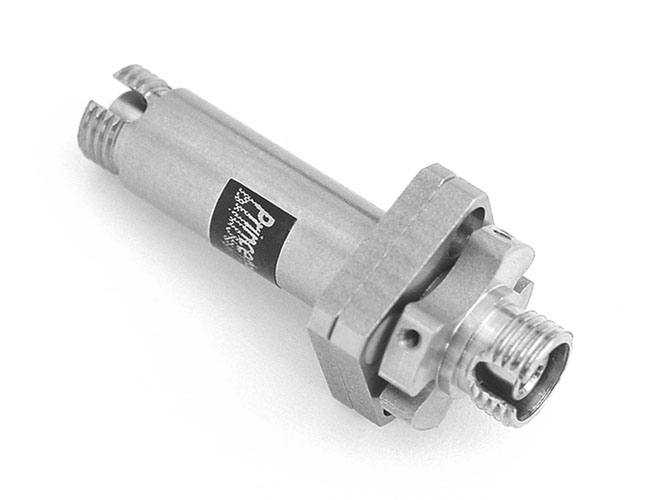

RFCX Optic Fiber Rotary Adapter

RFCX-155-28

Enlarge

Interpolation/Temperature Cycle Curve

Enlarge

RFCX series optical fiber rotary adapter has the same cross section and installation standard as standard FC flange, and ensures the uninterrupted transmission of optical signal while the adapter rotates.

Like other Princetel single-channel optical fiber rotary joints, RFCX has low insertion loss and low insertion loss variation. The return loss can reach > 40dB. RFCX dust-proof, moisture-proof. It can operate in extremely low temperature environment.

Technical Parameter

Parameter	Value
Wavelength range	650-1650 nm
Insertion loss	<3 dB
Insertion loss variation	<0.5 dB (Typical value: 0.3 dB)
Return loss (SM)	>30 dB (Typical value: 40 dB)
Maximum speed	2,000 RPM
Starting torque	<0.01 Nm
Life expectancy	200-400 million revolutions
Withstanding power	23 dBm
Working temperature	-40 to 85 C
Storage temperature	-50 to 85 C
Package type	FC
Body material	Stainless steel
Fiber specification	Single mode or multi mode
Connection type	FC/PC
Installation mode	Same as FC flange.
Exact weight	19 g
Vibration standard	MIL-STD-167-1A
Impact standard	MIL-STD-810G
IP rating	IP 68

Order code
RFCX- Working wavelength- Fiber category
Document download
RFCX outline drawing
