RF rotary joint

  • High frequency RF rotary joint
  • High frequency waveguide rotary joint

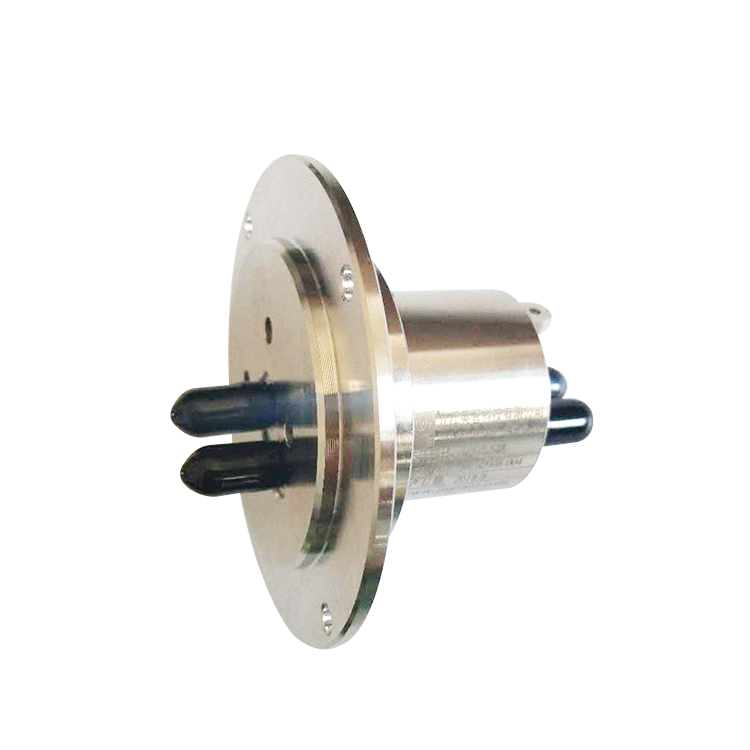

High frequency RF rotary joint


RF rotary joint is radio frequency rotary joint.The frequency range from DC-50Ghz.Its channel number from 1 to 5 channel are optional.Connector type could be matched according to user's demand.


RF rotary joint can be design to combine with electric slip ring, it's also named high frequency rotary joint, coaxial rotary joint, microwave rotary joint, and waveguide rotary joint.


Used in the 360° continuous rotation devices to transfer DC~50GHz high frequency signals.Application for satellite Antenna,vehicle,radar,Microwave antenna, test bench....etc,it can be support single-channel or multi-channels high frequency for transmission, also support 1~2 channel DC~50GHz RF signals, communication,1~96 circuits power or signals supply, fluid mixing transmission medium. High frequency signal is used by 50Ω impedance of RF coaxial structure. for others connector can be switching, and lead wire RG178、RG316、RG174 available.
